Lithium Battery 3.1V 220mah Sodium-ion Lithium Battery Rechargeable For 100KWH 150KWH Energy Storage System
Contact Person : Rosa Liu
Phone Number : +86 18975107916
WhatsApp : +8618975107916
| Minimum Order Quantity : | 10-1000 units | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Wooden case and Carton case | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 1000 units per month |
| Place of Origin: | Hunan,China | Brand Name: | CLF |
|---|---|---|---|
| Certification: | MSDS,UN38.3 | Model Number: | CLF-R4613 |
|
Detail Information |
|||
| Nominal Voltage: | 3.1V | Capacity: | 220Ah |
|---|---|---|---|
| Application: | Energy Storage System | Battery Type: | Sodium-ion Battery |
| Weight: | 4.4KG | Charge Current: | 0.5C |
| The Discharge Rate: | 1C | OEM/ODM: | Available |
| Storage Temperature: | -30~60°C | Cells Dimension: | 173.6*71.25*203.7mm |
| Cycle Life: | ≥4000 Times | ||
| Highlight: | 3.1V 50mah Lithium Battery,Rechargeable Sodium ion Lithium Battery,150KWH Lithium Battery |
||
Product Description
Specification

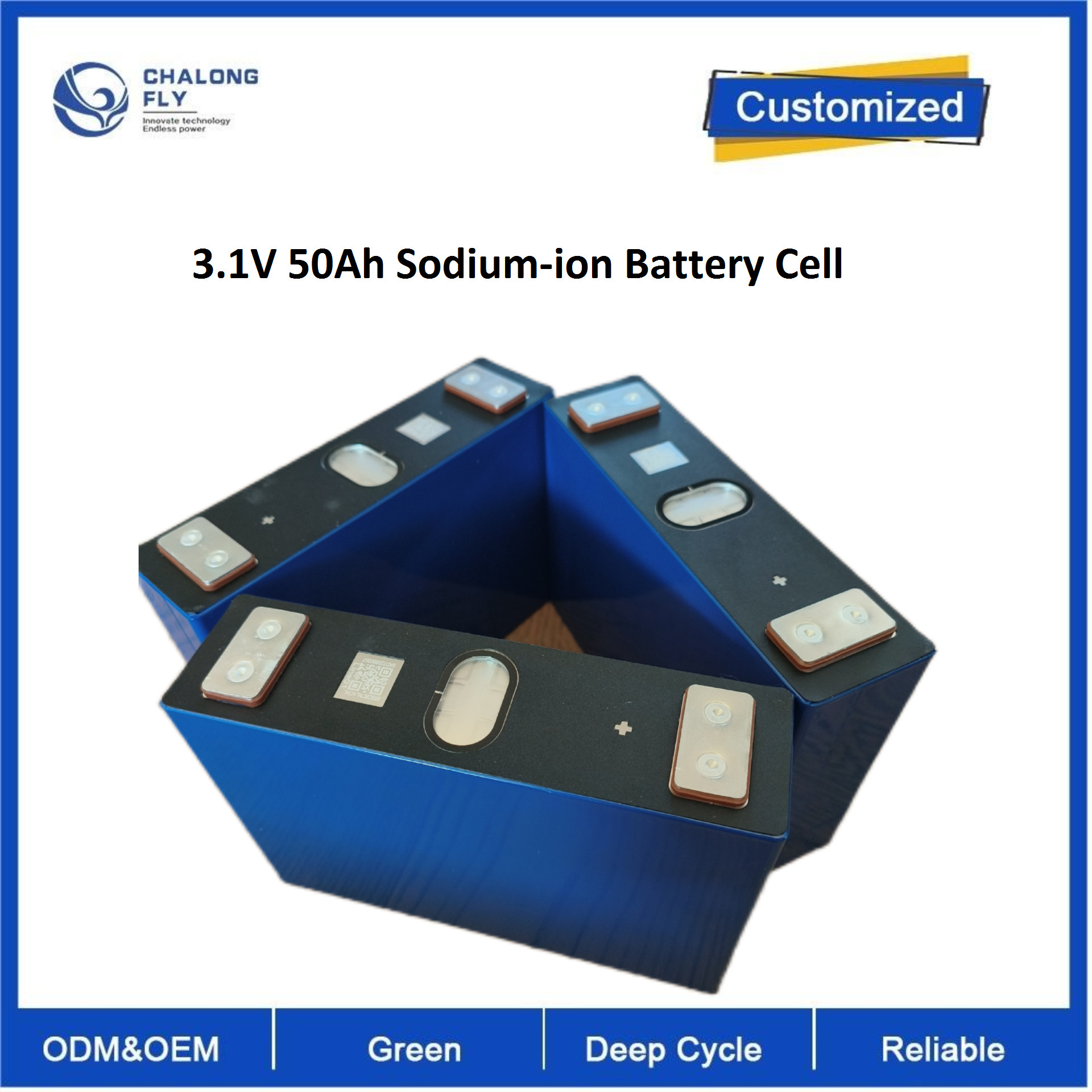

3.1V 50Ah Sodium-ion Battery Specification
| Item | Parameter | Remark | |
| Rated capacity | 50ah | ||
| Rated voltage | 3.1V | ||
| Charge current | 1C5A | working temperature:0～45℃ | |
| Fast charge current | 2C5A | working temperature:-0～45℃ | |
| Charge voltage | 3.90±0.04V | CC/CV | |
| Discharge current | 1C5A | working temperature:-30～60℃ | |
| Max discharge current | 3C5A | working temperature:0～60℃ | |
| Discharge Cut-off Voltage | 1.5V | ||
| Delivery Voltage | ≥3.1V | ||
| Internal resistance | ≤5mΩ |
Typical value 1.4±0.2mΩ Semi-charged state, AC 1KHz test condition |
|
| Storage temperature | ≤1month | -20～45℃ |
The battery should be stored at 50% charge or at a voltage of 3.2-3.3V; Long-term storage temperature: 20±5℃ (recommended). |
| ≤3months | 0～30℃ | ||
| ≤6months | 20±5℃ | ||
| Storage humidity | 65±20% RH | ||
Application
Electric two-wheelers, three-wheelers, A00 class electric vehicles, heavy trucks, ships and energy storage systems
