Home ProductsEV Lithium Battery PackOEM Battery PackCLF 72V 120Ah 100ah Lithium Ion Battery Pack 6000 Cycles For Electric Bike Motor Wheeler Golf Carts Boats AGV Equipment

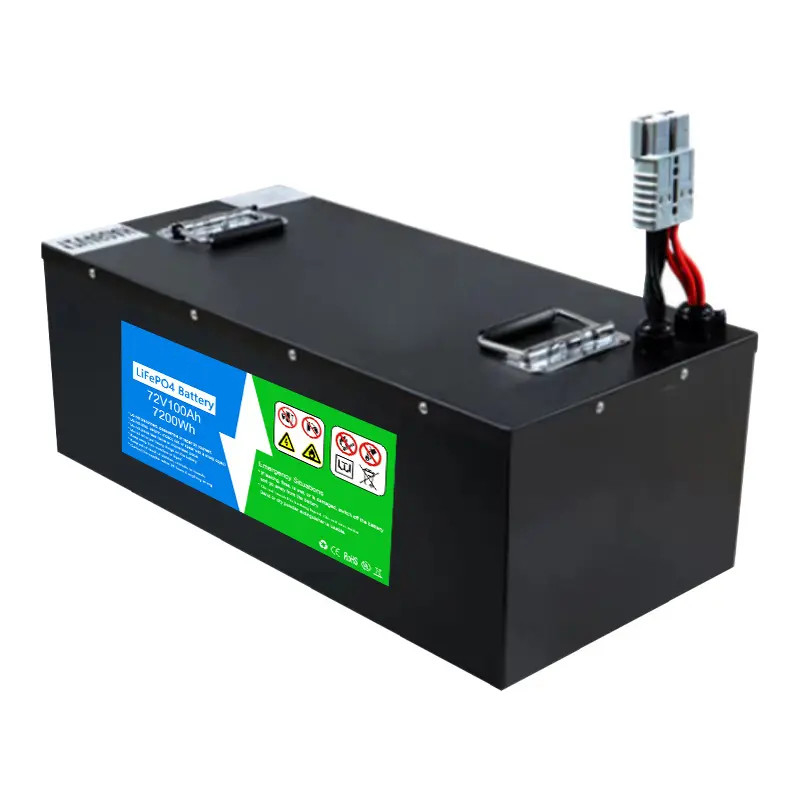

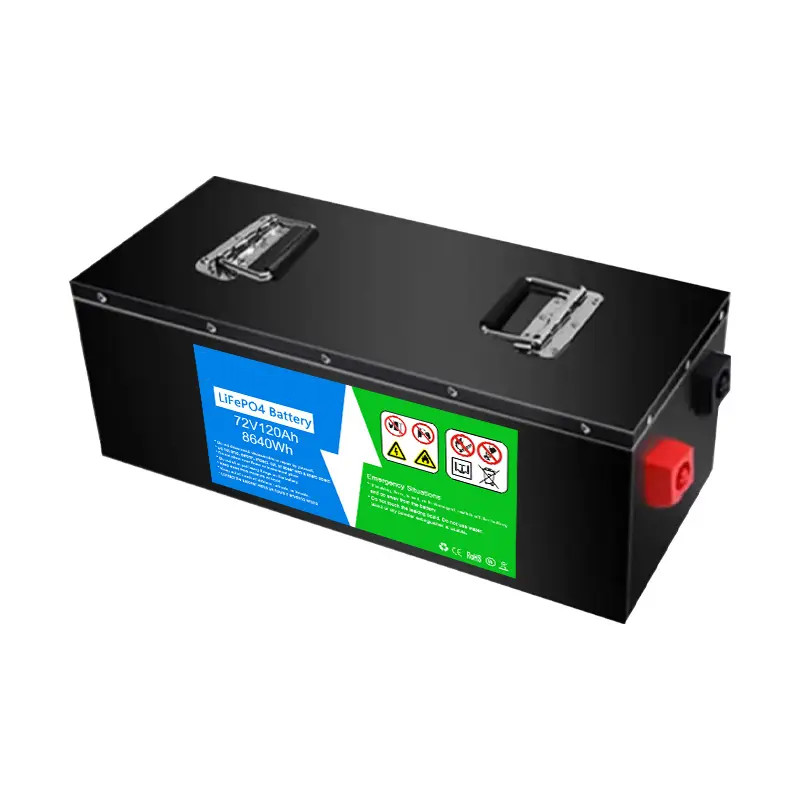

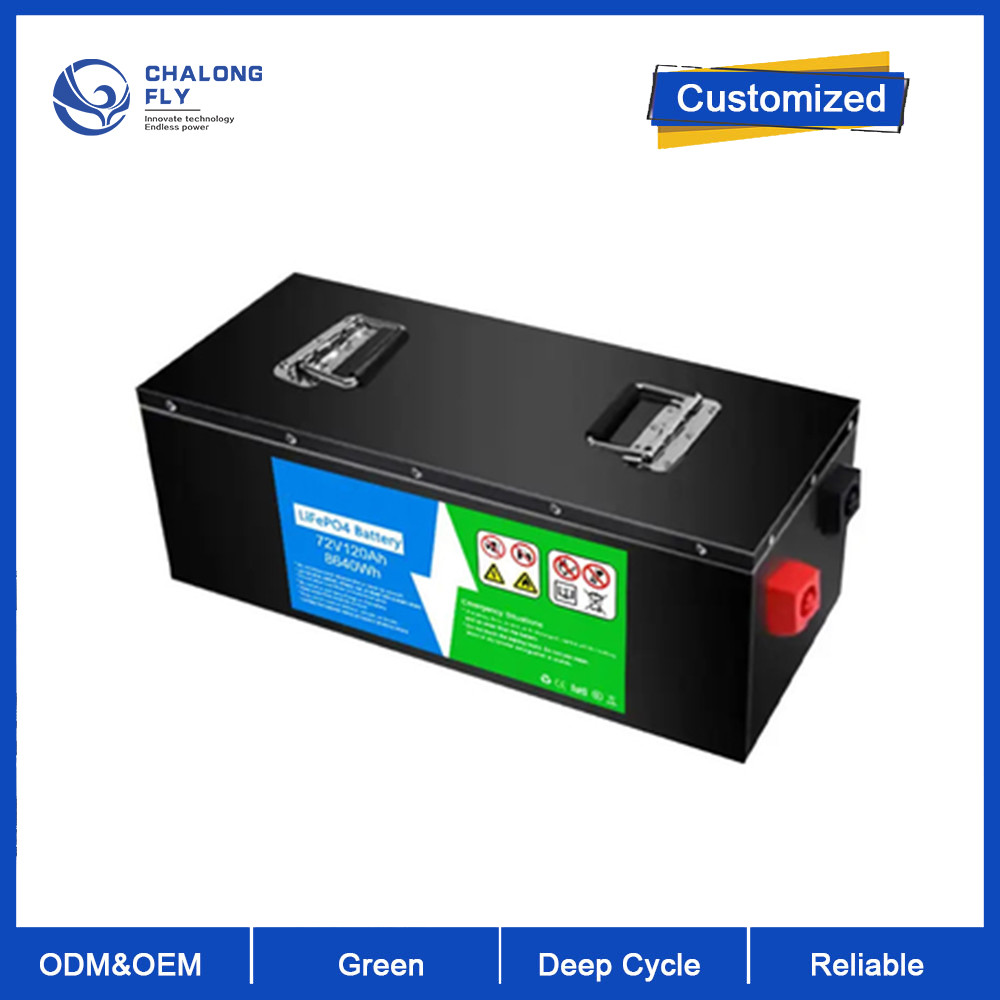

CLF 72V 120Ah 100ah Lithium Ion Battery Pack 6000 Cycles For Electric Bike Motor Wheeler Golf Carts Boats AGV Equipment
CLF 72V 120Ah 100ah Lithium Ion Battery Pack 6000 Cycles For Electric Bike Motor Wheeler Golf Carts Boats AGV Equipment CLF 72V 120Ah 100ah Lithium Ion Battery Pack 6000 Cycles For Electric Bike Motor Wheeler Golf Carts Boats AGV Equipment CLF 72V 120Ah 100ah Lithium Ion Battery Pack 6000 Cycles For Electric Bike Motor Wheeler Golf Carts Boats AGV Equipment CLF 72V 120Ah 100ah Lithium Ion Battery Pack 6000 Cycles For Electric Bike Motor Wheeler Golf Carts Boats AGV Equipment
Contact Now

CLF 72V 120Ah 100ah Lithium Ion Battery Pack 6000 Cycles For Electric Bike Motor Wheeler Golf Carts Boats AGV Equipment

Minimum Order Quantity : 10 units Price : Negotiable
Packaging Details : Wooden case and Carton boxes Delivery Time : 7-15 working days
Place of Origin: China Brand Name: CLF/OEM
Certification: CB, UL, CE, ROHS,UN38.3, MSDS, BIS Model Number: CLF-R4125

Detail Information
Battery Model: 72V 120Ah Battery Cell: Grade A Lithium Battery Cell
Battery Type: Li-Ion Anode Materials: LFP
Nominal Voltage:: 73.6V Nominal Capacity:: 120Ah
Storage Temperature: 0~45℃ Working Temperature: -20~65℃
Size: 930*340*150mm Cycle Life:: Over 3500 Cycles
Warranty:: 36months Application:: Tricycle, Motorcycle, Golf Carts, Electric Vehicles
Highlight:

6000 cycles Lithium ion Battery Pack

,

120Ah Lithium ion Battery Pack

,

100ah Lithium ion Battery Pack

Product Description

CLF 72V 120Ah 100ah Lithium Ion Battery Pack 6000 Cycles For Electric Bike Motor Wheeler Golf Carts Boats AGV Equipment 0



PRODUCT PARAMETER

ELECTRICAL PERFORMANCE
MECHANICAL PERFORMANCE
Nominal Voltage
72V
Dimension (L x W x H)
930x 340 x 150 mm
Nominal Capacity
120 Ah
Approx. Weight
83 kg
Capacity @ 20A
300 min
Terminal Type
DIN POST
Energy
8640 Wh
Terminal Torque
80 ~ 100 in-lbs (9 ~ 11 N-m)
Resistance
≤40 mΩ @ 50% SOC
Case Material
Metal
Self Discharge
<3% / Month
Enclosure Protection
IP51



CHARGE PERFORMANCE
DISCHARGE PERFORMANCE
Recommended Charge Current
10-120A
Maximum Continuous Discharge Current
180 A
Maximum Charge Current
120A
Peak Discharge Current
240 A (3s)
Recommended Charge Voltage
87.6V
BMS Discharge Cut-Off Current
300 A ±150 A (30ms)
BMS Charge Cut-Off Voltage
<93.6 V (3.9V/Cell)
Recommended Low Voltage Disconnect
60 V (2.5V/Cell)
Reconnect Voltage
>87.6 V (3.6V/Cell)
BMS Discharge Cut-Off Voltage
>48 V (2s) (2.0V/Cell)
Balancing Voltage
<76.8V (3.6V/Cell)
Reconnect Voltage
>60 V (2.5V/Cell)
Maximum Batteries in Series
8 (*Consult MUST)
Short Circuit Protection
1000A ~ 300 μs
TEMPERATURE PERFORMANCE
HEATING FOIL PERFORMANCE
Discharge Temperature
-4 ~ 131 ºF (-20 ~ 55 ºC)
Heating Temperature Range
-4 to 41 ºF (-20 to 65 ºC)
Charge Temperature
-4 ~ 113 ºF (0 ~ 45 ºC)
Heating Time
Approximately 1 hour @ 7.5 A
Storage Temperature
23 ~ 95 ºF (-5 ~ 35 ºC)
BMS Heating Foil Cut-Off
158 ºF (70 ºC)
BMS High Temperature Cut-Off
149 ºF (65 ºC)

COMPLIANCE
CE (battery) UN38.3 (battery)
UL1642 & IEC62133 (cells)
Reconnect Temperature
131 ºF (55 ºC)
UN 3480, CLASS 9



CLF 72V 120Ah 100ah Lithium Ion Battery Pack 6000 Cycles For Electric Bike Motor Wheeler Golf Carts Boats AGV Equipment 1

CLF 72V 120Ah 100ah Lithium Ion Battery Pack 6000 Cycles For Electric Bike Motor Wheeler Golf Carts Boats AGV Equipment 2

CLF 72V 120Ah 100ah Lithium Ion Battery Pack 6000 Cycles For Electric Bike Motor Wheeler Golf Carts Boats AGV Equipment 3



CLF 72V 120Ah 100ah Lithium Ion Battery Pack 6000 Cycles For Electric Bike Motor Wheeler Golf Carts Boats AGV Equipment 4



CLF 72V 120Ah 100ah Lithium Ion Battery Pack 6000 Cycles For Electric Bike Motor Wheeler Golf Carts Boats AGV Equipment 5CLF 72V 120Ah 100ah Lithium Ion Battery Pack 6000 Cycles For Electric Bike Motor Wheeler Golf Carts Boats AGV Equipment 6



CLF 72V 120Ah 100ah Lithium Ion Battery Pack 6000 Cycles For Electric Bike Motor Wheeler Golf Carts Boats AGV Equipment 7



CLF 72V 120Ah 100ah Lithium Ion Battery Pack 6000 Cycles For Electric Bike Motor Wheeler Golf Carts Boats AGV Equipment 8



CLF 72V 120Ah 100ah Lithium Ion Battery Pack 6000 Cycles For Electric Bike Motor Wheeler Golf Carts Boats AGV Equipment 9



FAQs

Q1. Are you a factory?
A: Yes, we are a professional lithium battery manufacturer in China, and factory tour is acceptable.

Q2. Do you accept OEM/ODM?
A: Yes, OEM, ODM, LOGO, and STICKER is acceptable, our professional team is on hand to offer you any solutions.

Q3. Can I have a sample order first?
A: Yes, sample order is acceptable.

Q4. How will my order be shipped?
A: Chalong Fly offers a variety of shipping methods, such as DHL, UPS, FedEx, TNT, Airline and sea shipping.

Q5: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc.

Q6. Can we sign a NDA in order for a long-term cooperation?
A: Yes, the client’s requirements is respected.

Q7. Why do you choose Chalong Fly?
A: Chalong Fly R&D center has more than 100 R&D engineers, 25 of whom have more than 10 years of experience related to power development. We have a deep understanding of power electronics technology, and a full understanding of the needs of the application industry, and have developed many public technology solutions.
