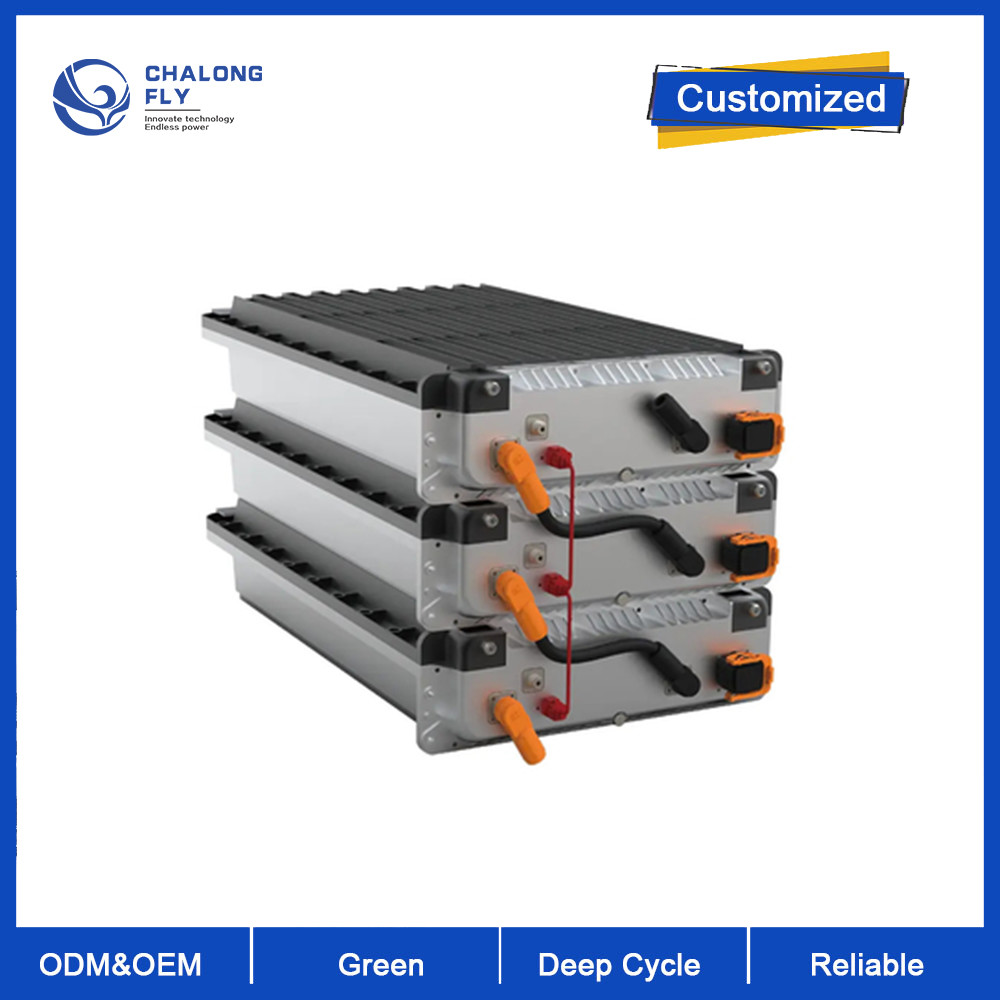

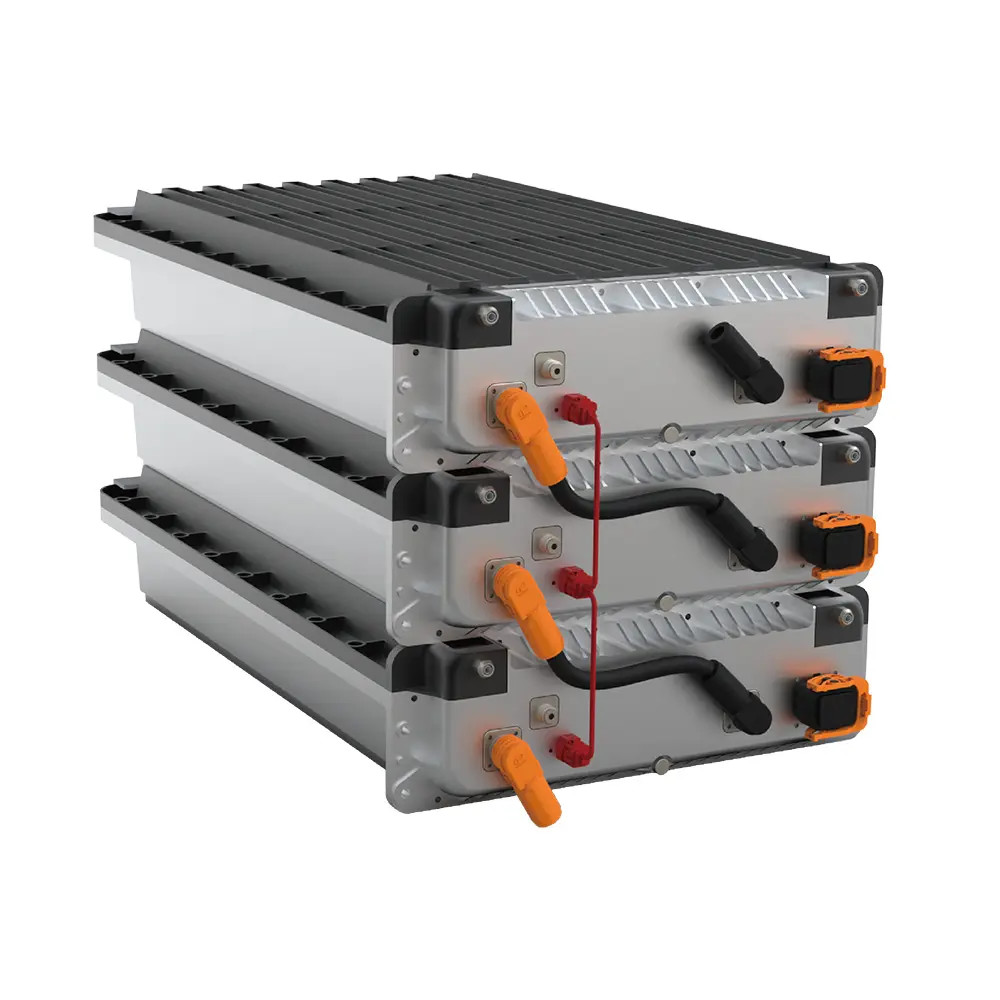

CLF 51.2-870.4V/50-322Kwh LiFePO4 Battery With BMS And Fast Charge For Power Traction Electric Ship Marine Custom

Minimum Order Quantity : 10 units Price : Negotiable
Packaging Details : Wooden case and Carton boxes Delivery Time : 7-15 working days
Place of Origin: China Brand Name: CLF/OEM
Certification: CB, UL, CE, ROHS,UN38.3, MSDS, BIS Model Number: CLF-R4126

Detail Information

Battery Model: 51.2-870.4V/7-322Kwh Battery Cell: Grade A Lithium Battery Cell
Battery Type: Li-Ion Anode Materials: LFP
Nominal Voltage:: 51.2-870.4V Energy: 7-322Kwh
Storage Temperature: 0~45℃ Working Temperature: -20~65℃
Cycle Life:: Over 3500 Cycles Warranty:: 36months
Application:: Tricycle, Motorcycle, Golf Carts, Electric Vehicles
Highlight:

51.2-870.4V LiFePO4 Battery

,

Fast Charge LiFePO4 Battery

,

Power Traction LiFePO4 Battery

Product Description

CLF 51.2-870.4V/50-322Kwh LiFePO4 Battery With BMS And Fast Charge For Power Traction Electric Ship Marine Custom 0



PRODUCT PARAMETER

Specification 1P16S 1P32S 1P48S 2P48S
Number of Battery Packs 1 2 3 6
Rated Voltage (V) 51.2 102.4 153.6 153.6
Rated Capacity (Ah) 150/175 150/175 150/175 300/350
Rated Power (Kwh) 7.68/8.96 15.36/17.92 23.04/26.88 46.08/53.76
Weight (kg) ≈99 ≈198 ≈297 ≈594
PDU Type A A A B

Specification 3P48S 1P96S 2P96S 3P96S
Number of Battery Packs 9 6 12 18
Rated Voltage (V) 153.6 307.2 307.2 307.2
Rated Capacity (Ah) 450/525 150/175 300/350 450/525
Rated Power (Kwh) 69.12/80.64 46.08/53.76 92.16/107.52 138.24/161.28
Weight (kg) ≈891 ≈594 ≈1188 ≈1782
PDU Type B A B B

Specification 1P192S 2P192S 3P192S 2P192S
Number of Battery Packs 12 24 36 17
Rated Voltage (V) 614.4 614.4 614.4 870.4
Rated Capacity (Ah) 150/175 300/350 450/525 150/175
Rated Power (Kwh) 92.16/107.52 184.32/215.04 276.48/322.56 130.56/152.32
Weight (kg) ≈1188 ≈2376 ≈3564 ≈1683
PDU Type A B B A





CLF 51.2-870.4V/50-322Kwh LiFePO4 Battery With BMS And Fast Charge For Power Traction Electric Ship Marine Custom 1



CLF 51.2-870.4V/50-322Kwh LiFePO4 Battery With BMS And Fast Charge For Power Traction Electric Ship Marine Custom 2

CLF 51.2-870.4V/50-322Kwh LiFePO4 Battery With BMS And Fast Charge For Power Traction Electric Ship Marine Custom 3

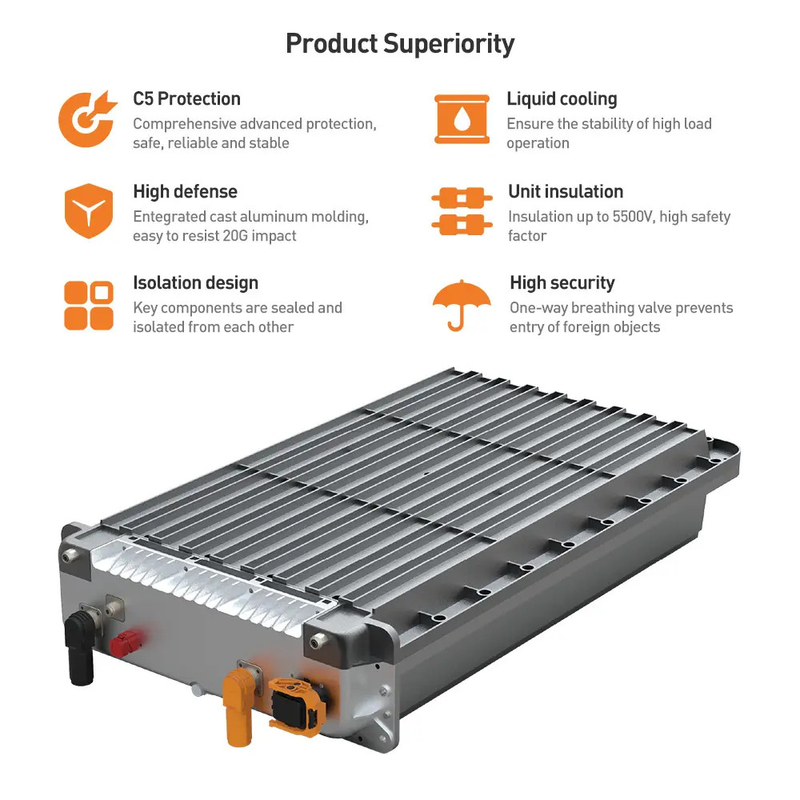

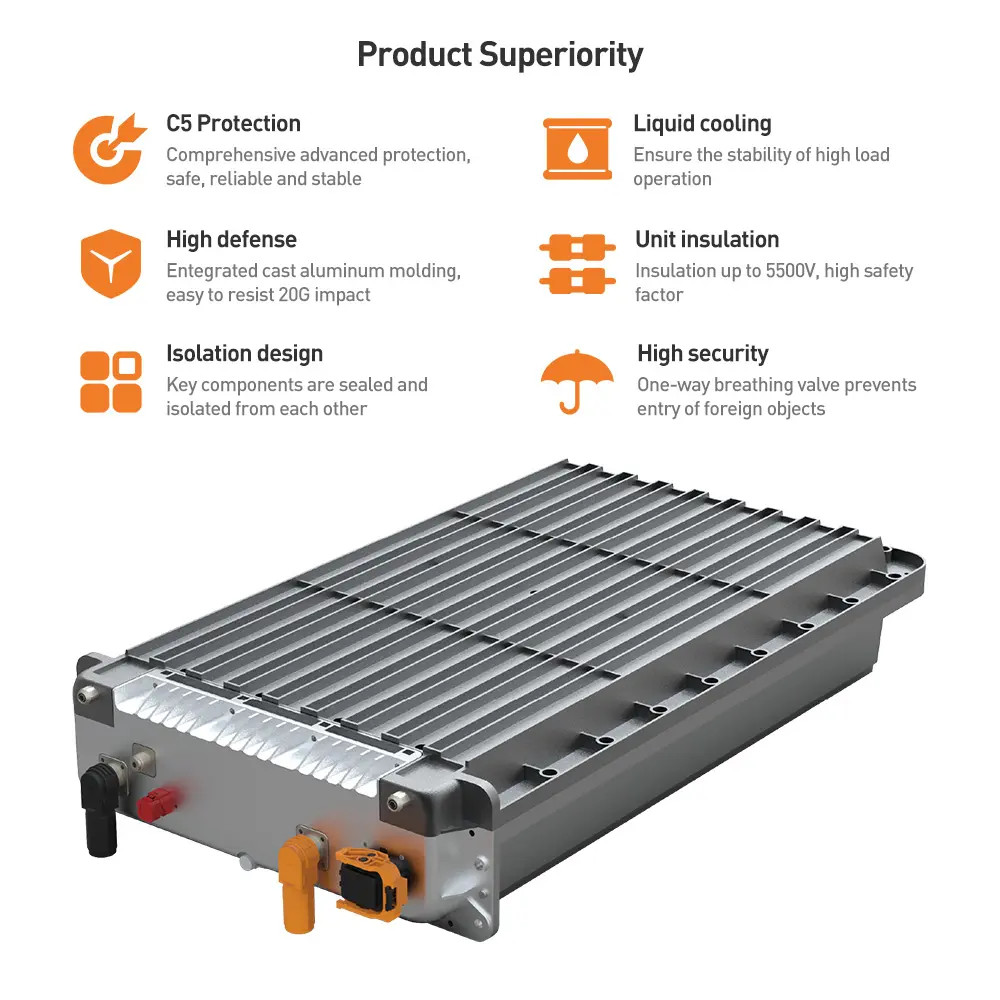

  1. C5 Protection: comprehensive advancedprotection,safe,reliable and stable
  2. Liquid cooling: ensure the stability ofhigh load operation
  3. High defense: integrated cast aluminummolding, easy to resist 20G impact
  4. Unit insulation: insulation up to 5500Vhigh safety factor
  5. Isolation design: key components aresealed and isolated from each other
  6. High security: one-way breathing valveprevents entry of foreign objects

CLF 51.2-870.4V/50-322Kwh LiFePO4 Battery With BMS And Fast Charge For Power Traction Electric Ship Marine Custom 4CLF 51.2-870.4V/50-322Kwh LiFePO4 Battery With BMS And Fast Charge For Power Traction Electric Ship Marine Custom 5



CLF 51.2-870.4V/50-322Kwh LiFePO4 Battery With BMS And Fast Charge For Power Traction Electric Ship Marine Custom 6

CLF 51.2-870.4V/50-322Kwh LiFePO4 Battery With BMS And Fast Charge For Power Traction Electric Ship Marine Custom 7CLF 51.2-870.4V/50-322Kwh LiFePO4 Battery With BMS And Fast Charge For Power Traction Electric Ship Marine Custom 8



CLF 51.2-870.4V/50-322Kwh LiFePO4 Battery With BMS And Fast Charge For Power Traction Electric Ship Marine Custom 9



CLF 51.2-870.4V/50-322Kwh LiFePO4 Battery With BMS And Fast Charge For Power Traction Electric Ship Marine Custom 10





FAQs

Q1. Are you a factory?
A: Yes, we are a professional lithium battery manufacturer in China, and factory tour is acceptable.

Q2. Do you accept OEM/ODM?
A: Yes, OEM, ODM, LOGO, and STICKER is acceptable, our professional team is on hand to offer you any solutions.

Q3. Can I have a sample order first?
A: Yes, sample order is acceptable.

Q4. How will my order be shipped?
A: Chalong Fly offers a variety of shipping methods, such as DHL, UPS, FedEx, TNT, Airline and sea shipping.

Q5: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc.

Q6. Can we sign a NDA in order for a long-term cooperation?
A: Yes, the client’s requirements is respected.

Q7. Why do you choose Chalong Fly?
A: Chalong Fly R&D center has more than 100 R&D engineers, 25 of whom have more than 10 years of experience related to power development. We have a deep understanding of power electronics technology, and a full understanding of the needs of the application industry, and have developed many public technology solutions.
