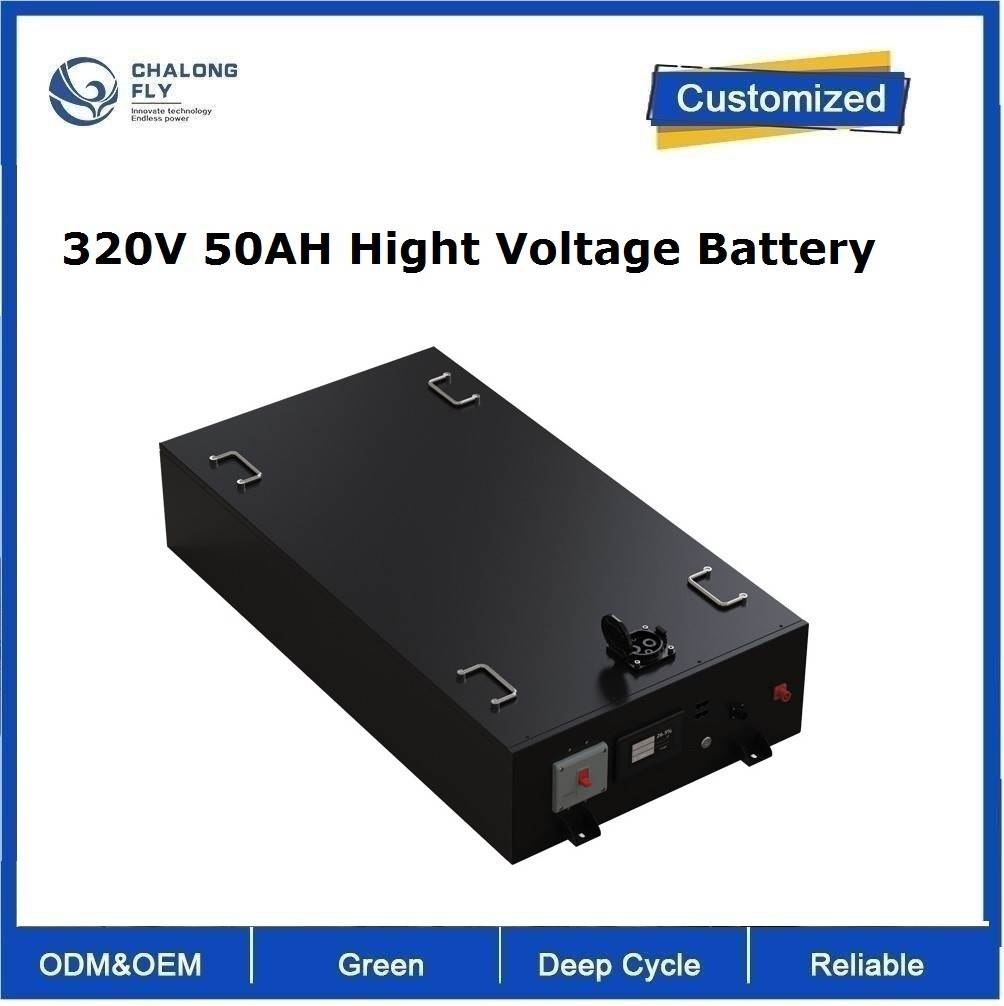

Special Electric Vehicle Machinaries 320V 50Ah High Voltage LiFePO4 Battery Pack with Smart BMS and 25A Charging Current

Minimum Order Quantity : 2 Packaging Details : wooden case
Delivery Time : 20-30days Payment Terms : L/C, T/T
Supply Ability : 20000/month
Place of Origin: Changsha, Hunan, China Brand Name: CLF
Certification: UN38.3/MSDS Model Number: CLF-R5103

Detail Information

Brand: CLF/ Customized Battery Type: LiFePO4
Combination: 100S1P Voltage: 320V Or Customized
Capacity: 50Ah Or Customized Size: 1160*626*236mm
Weight: 160KGS Charging Current: 25A
Discharging Current: 100A Protection Grade: IP67
Communication: CAN/RS485
Highlight:

320V LiFePO4 Battery Pack

,

25A Charging Current LiFePO4 Battery Pack

,

Special Electric Vehicle LiFePO4 Battery Pack

Product Description

Special Electric Vehicle Machinaries 320V 50Ah High Voltage LiFePO4 Battery Pack with Smart BMS and 25A Charging Current 0

CLF OEM ODM 320V 50Ah High Voltage Lithium Iron Phosphate Battery Pack New Energy LiFePO4 Battery for Special Electric Vehicle Machinaries Special Electric Vehicles with Smart BMS



Description




Item Parameter
Battery Type LiFePO4
Capacity 50AH
Voltage 320V
Operating voltage 280V-360V
Charging cutoff voltage 360V
Discharging cutoff voltage 280V
Max continuous charging current 25A
Max continuous discharging current 100A
Charging temperature 0°C~55°C
Discharging temperature 30°C~60°C
Dimension 1160*626*236mm
Weight 160KG

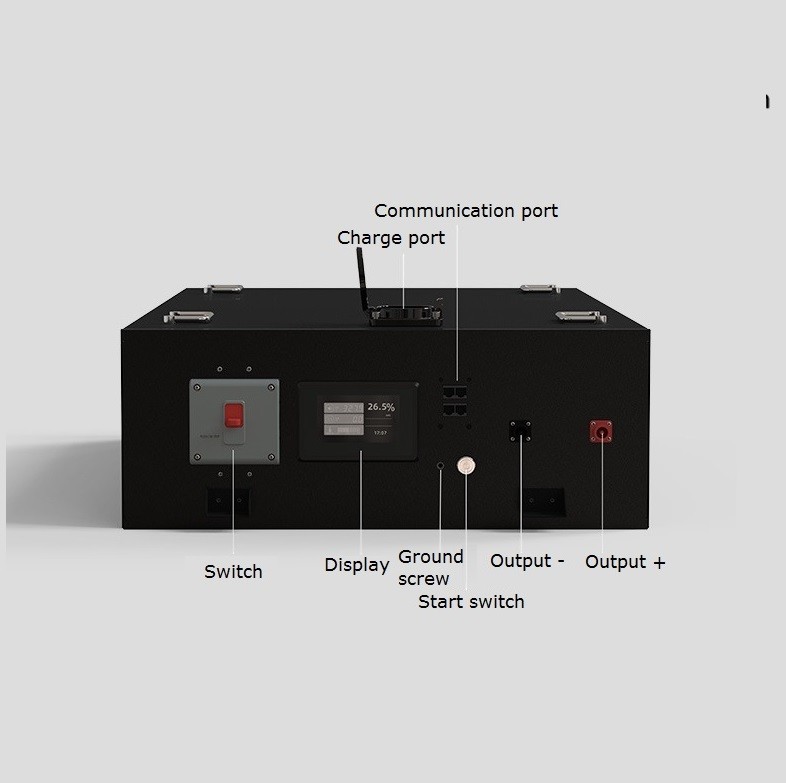

Product Details




Special Electric Vehicle Machinaries 320V 50Ah High Voltage LiFePO4 Battery Pack with Smart BMS and 25A Charging Current 1

  • Modular design, standardized production, strong versatility, according to demand to match different charge and discharge ports
  • BMS system, MOS and relay two sides of the case management, to achieve the entire system monitoring and management.
  • Using lithium iron phosphate cell, low internal resistance, high power rate, high safety, long life. The consistency of internal resistance, voltage and capacity of single cell is high.
  • Selection of industry high-end battery, high cycle times long service life, low overall operating cost.
  • Intelligent system, low loss, high conversion efficiency, strong stability, reliable operation
  • It can be equipped with a visual display, which can be adapted to a variety of inverters to view data and operating status in real time, and operate accurately.
  • Support fast charge and discharge, large current discharge, release the surging performance of your product.
  • Support CAN2.0, RS485, Bluetooth and other communication, APP operation of the battery. Meet the needs of a variety of occasions.





Special Electric Vehicle Machinaries 320V 50Ah High Voltage LiFePO4 Battery Pack with Smart BMS and 25A Charging Current 2





Special Electric Vehicle Machinaries 320V 50Ah High Voltage LiFePO4 Battery Pack with Smart BMS and 25A Charging Current 3Special Electric Vehicle Machinaries 320V 50Ah High Voltage LiFePO4 Battery Pack with Smart BMS and 25A Charging Current 4Special Electric Vehicle Machinaries 320V 50Ah High Voltage LiFePO4 Battery Pack with Smart BMS and 25A Charging Current 5Special Electric Vehicle Machinaries 320V 50Ah High Voltage LiFePO4 Battery Pack with Smart BMS and 25A Charging Current 6
