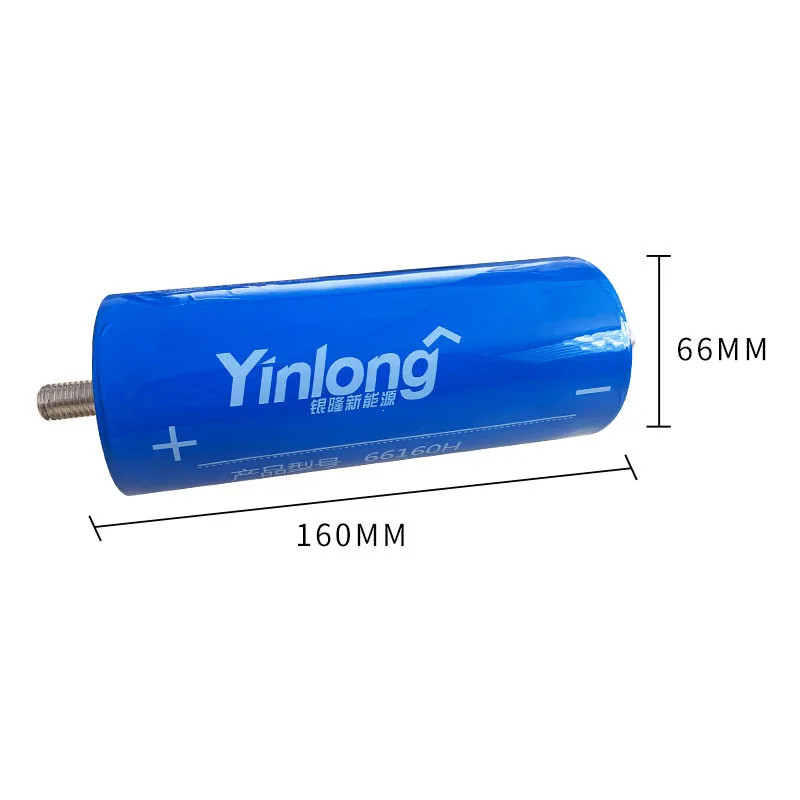

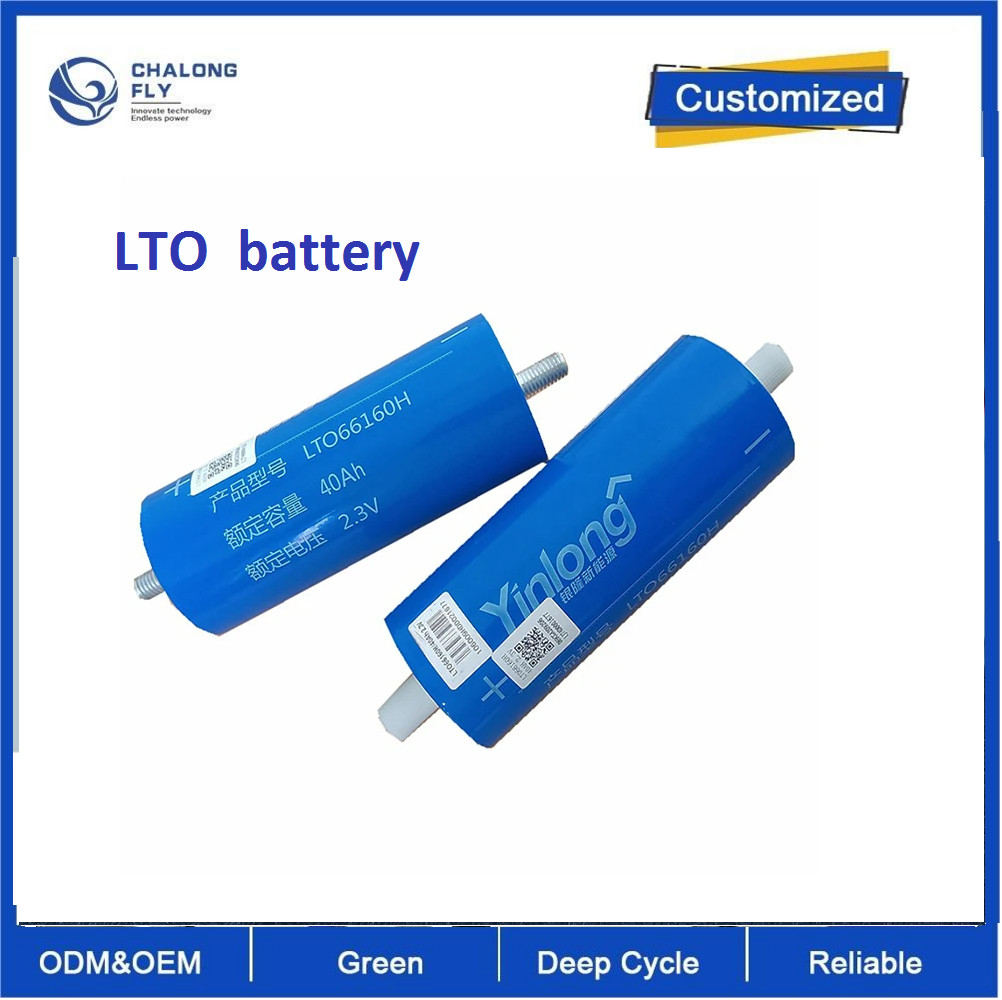

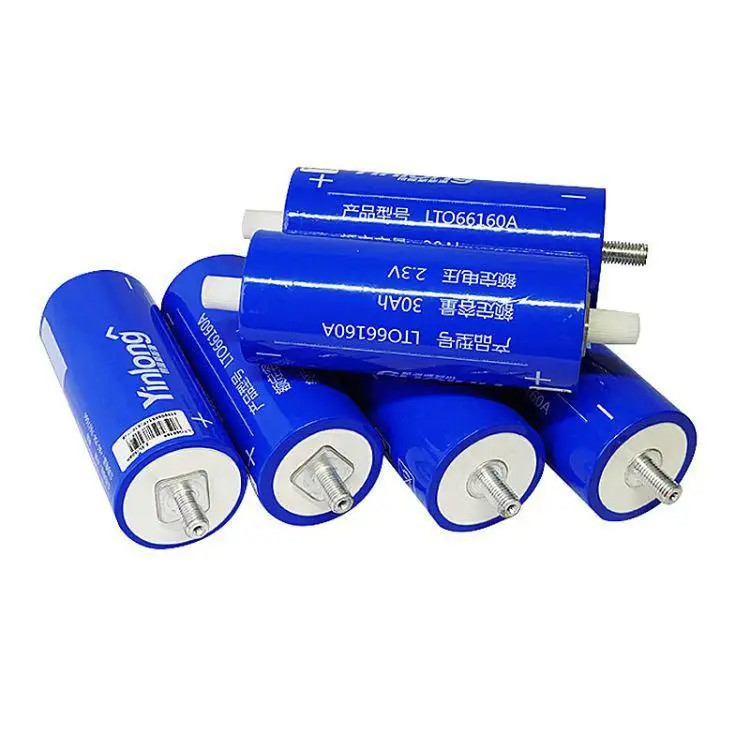

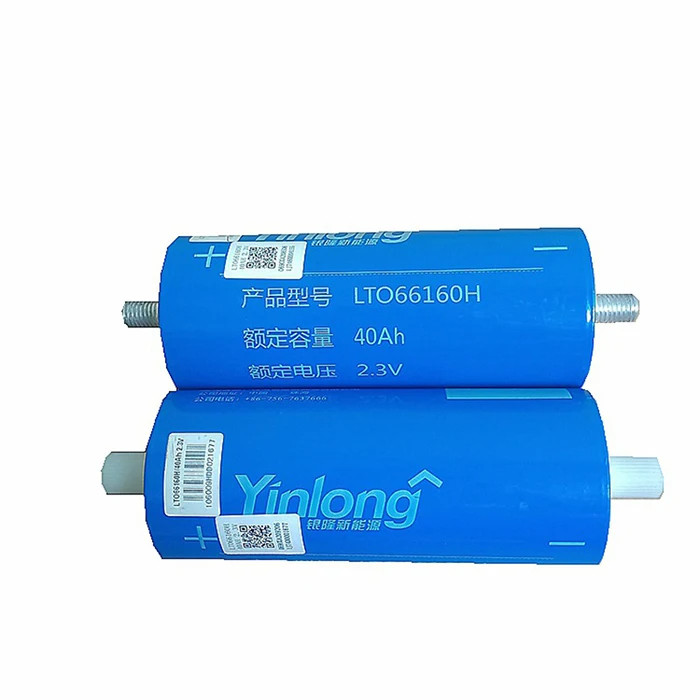

45ah LTO66160H low high temperature 35000 cycle long life yinlong lithium LTO battery Lithium titanate battery 2.3v 40ah
45ah LTO66160H low high temperature 35000 cycle long life yinlong lithium LTO battery Lithium titanate battery 2.3v 40ah 45ah LTO66160H low high temperature 35000 cycle long life yinlong lithium LTO battery Lithium titanate battery 2.3v 40ah 45ah LTO66160H low high temperature 35000 cycle long life yinlong lithium LTO battery Lithium titanate battery 2.3v 40ah 45ah LTO66160H low high temperature 35000 cycle long life yinlong lithium LTO battery Lithium titanate battery 2.3v 40ah
Contact Now

45ah LTO66160H low high temperature 35000 cycle long life yinlong lithium LTO battery Lithium titanate battery 2.3v 40ah

Place of Origin: China Brand Name: CLF
Certification: CE Model Number: CLF-R51026

Detail Information
Material: LTO Battery Volatge: 2.3V
WORK Voltage: 1.6V~2.8v Internal Resistance: ≤1mΩ
Charge Time: Normal 4h, Fast 1h Capacity: 30~45ah
Maximum Working Current: 6c~15c Cycle: 30000 Times
Weight: 1.3kg Operating Temperature: -20 ℃ --- 65 ℃ (normal Working Temperature)
Storage Temperature: -20 ℃ ~ + 60 ℃ (safe Storage Temperature)
Highlight:

35000 cycle LTO battery

,

45ah LTO battery

,

2.3v LTO battery

Product Description

45ah LTO66160H low high temperature 35000 cycle long life yinlong lithium LTO battery Lithium titanate battery 2.3v 40ah 0



PRODUCT PARAMETER



Product Name
Brand new lithium titanate battery 2.3V40AH/45AH/20000 times of low temperature, high temperature and long life 6 minutes fast
charge
Material
LTO battery
Function
EV CAR SOLAR
Package
carton
volatge
2.3V
WORK voltage
1.6V~2.8v
Internal Resistance
≤1mΩ
charge time
Normal 4h, fast 1h
capacity
30~45ah
Maximum working current
6c~15c
Cycle
30000 times
weight
1.3kg
shell material
plastic
Operating temperature
-20 ℃ --- 65 ℃ (normal working temperature)
Storage temperature
-20 ℃ ~ + 60 ℃ (safe storage temperature)



45ah LTO66160H low high temperature 35000 cycle long life yinlong lithium LTO battery Lithium titanate battery 2.3v 40ah 1

45ah LTO66160H low high temperature 35000 cycle long life yinlong lithium LTO battery Lithium titanate battery 2.3v 40ah 2

45ah LTO66160H low high temperature 35000 cycle long life yinlong lithium LTO battery Lithium titanate battery 2.3v 40ah 3

45ah LTO66160H low high temperature 35000 cycle long life yinlong lithium LTO battery Lithium titanate battery 2.3v 40ah 4

Features of lithium titanate battery:



High-power charging and discharging capability: fast charging only takes 6 minutes.

Long cycle life: 10 times that of traditional lithium-ion batteries.

Low temperature charge and discharge performance: good condition at low temperature -30℃.

Good safety performance. There is almost no SEI film on the lithium titanate anode, which prevents the battery from overheating and causing fire.

Lithium titanate battery has the characteristics of long life, good low-temperature performance, safe and fast charging and discharging, and can be used in power grid peak shaving, wind energy, and solar energy storage.

45ah LTO66160H low high temperature 35000 cycle long life yinlong lithium LTO battery Lithium titanate battery 2.3v 40ah 545ah LTO66160H low high temperature 35000 cycle long life yinlong lithium LTO battery Lithium titanate battery 2.3v 40ah 6

Advantages of lithium titanate battery:

The use of electric vehicles instead of fuel vehicles is the best choice to solve urban environmental pollution. Among them, lithium-ion power batteries have attracted wide attention from researchers. In order to meet the requirements of electric vehicles for on-board knap ion power batteries, the development of high safety and good rate performance And the long-life negative electrode material is its hot and difficult point.

Currently, commercial lithium-ion battery negative electrodes mainly use carbon materials, but lithium batteries using carbon as negative electrodes still have some drawbacks in their applications:

1. Lithium dendrites are easy to precipitate during overcharging, which will cause short circuit of the battery and affect the safety performance of the lithium battery;

2. It is easy to form SEI film, which results in low first charge and discharge efficiency and large irreversible capacity;

3. That is, the platform voltage of carbon materials is low (close to metal lithium), and it is easy to cause the decomposition of the electrolyte, which brings safety risks.

4. The volume changes greatly in the process of lithium ion insertion and extraction, and the cycle stability is poor. Compared with carbon materials, spinel-type


Li4Ti5012 has obvious advantages:

1. It is a zero-strain material with good cycle performance;

2. The discharge voltage is stable, and the electrolyte is not decomposed, which improves the safety performance of lithium batteries;

3. Compared with carbon anode materials, lithium titanate has a high lithium ion diffusion coefficient (2*10-8cm2/s), and can be charged and discharged at a high rate.

4. The potential of lithium titanate is higher than that of pure metal lithium, and it is not easy to produce lithium crystal branches, which provides a basis for ensuring the safety of lithium batteries.

APPLICATION:
For electric vehicles Agricultural equipment Robot equipment electric wheelchair Fishing equipment Solar energy storage Traffic equipment, street lights AGV trolley Fascia Gun Battery
45ah LTO66160H low high temperature 35000 cycle long life yinlong lithium LTO battery Lithium titanate battery 2.3v 40ah 7
